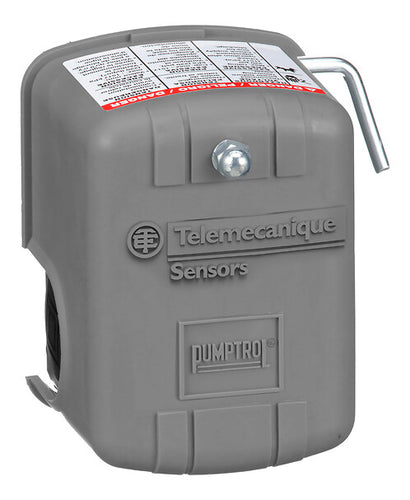

Telemecanique Sensors Pumptrol Actuated Pressure Switch 20 - 40 PSI

Telemecanique Sensors

PRESSURE SWITCH 575VAC 1HP F WITH OPTIONS


Characteristics

Main
Range of product Telemecanique Pressure sensors XM
Pressure sensor name FSG
Electrical circuit type Power circuit
Product specific application Not applicable


Complementary
Pressure sensor type Electromechanical pressure sensor
Controlled fluid Fresh water (0-70 °C), sea water (0-70 °C)
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Adjustable differential
Setting Internal
Local display Without
Electrical connection Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²
Fluid connection type G 1/4 (female) conforming to ISO 228
Operating position Any position
Terminal block type 4 terminals
Operating rate 10 CYCLE_PER_MINUTE
Terminals description ISO n°1
(1-2)NC
(3-4)NC


Environment
Standards CE IEC 60730
Protective treatment TC
IP degree of protection IP20 conforming to IEC 60529
